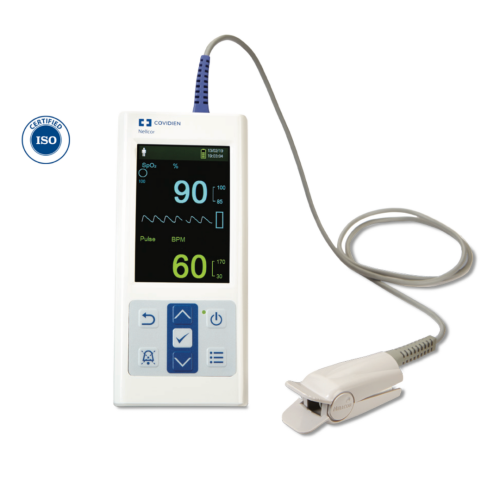

Nellcor Portable Pulse Oximeter with Pediatric Sensor

Convenient, handheld pulse oximeter that is ideal for spot-checks or continuous monitoring in various healthcare and home use settings.

Details

• Small, lightweight, ergonomic handheld monitor for continuous and spot-check pulse oximetry monitoring
• Supports a robust data set, including real-time SpO2 and PR values, SatSeconds alarm management, pleth waveform, blip bar and tabular trend data
• Supports standard and home-care modes for use in hospital, hospital-type facilities, transport, mobile environments and home-care environments
• Sleep Study Mode, which enables the clinician to dim the LCD display and silence alarms to prevent disruption of patients’ sleep
• Compatible with the complete line of Nellcor single-patient-use, reusable and specialty sensors with OxiMax technology
• 80 hours of data storage capability
• Screen size: 88.9 mm (3.5 in), measured diagonally
• Screen type: TFT LCD, white LED backlight, viewing cone of 60o and optimal viewing distance of 1 meter
• Resolution: 320 x 480 pixels
• Patient status and system status alarms

Measurement Range

• SpO2: 1% to 100%
• Pulse rate: 20 to 250 beats per minute (bpm) Pulse range: 0.03% to 20%
• Display sweep speed: 6.25 mm/sec

Saturation

• Neonate low sat: 60 to 80% ±3 digits
• Neonate: 70 to 100% ±2 digits
• Low perfusion: 70 to 100% ±2 digits

Pulse rate

• Neonate: 20 to 250 bpm ±3 digits
• Low perfusion: 20 to 250 bpm ±3 digits

Battery

Four new lithium batteries with 3,000 mAh will typically provide 20 hours of monitoring with no external communication, no audible alarm sound and at an ambient temperature of 25° C.

• Type: Lithium AA
• Voltage: 1.5V x 4
